X2 aftermarket upgrades help

[Ienjoytheride]

Recently got a luna x2, and I would like to upgrade some components but am finding it difficult to find quality aftermarket parts from known mtb brands.

what have people upgraded and what were the specifications?

I need to upgrade the crank arms..(mine got stripped)and luna is sold out. Its difficult to find 150mm crank arms that fit the m600 bafang spindle.

Also want to upgrade wheelset to something more high end but cant figure out what hubs would fit, sizing, boost etc.

Any insight would be appreciated as well as just seeing other people's upgrades for inspiration.

Thanks!

[ncmired]

Biktrix has a pair, here. For short ISIS-syle crank arms without chainring spiders, I'd also look in the Unicycle world - like these examples.

Per the X2 web page, "thru-axle hubs in both front and rear 15x110 Boost front, 12x148 Boost rear".

[K442]

I may fully be wrong, but I don't think the M600 is running ISIS cranks. I thought it used an 12 spline "clincher" type set-up with two opposing bolts to grip the shaft and a third to retain the crank from slipping off the end. This is a 'bafang specific' design and aftermarket is pretty thin. ISIS is a 10 spline arrangement which is 'taper press fit' and only has one retaining bolt on the end of the shaft - but lots of options.

For 150mm Bafang cranks:

https://www.ebay.com/itm/125986793842

For stock Bafang cranks:

https://www.greenbikekit.com/bafang-m600-m500-m420-crank-arms.html

ISIS design comparo (note lack of 'clinching bolts', different spline count)

https://www.jitsie.com/244273-large_default/isis-cranks-per-pair.jpg

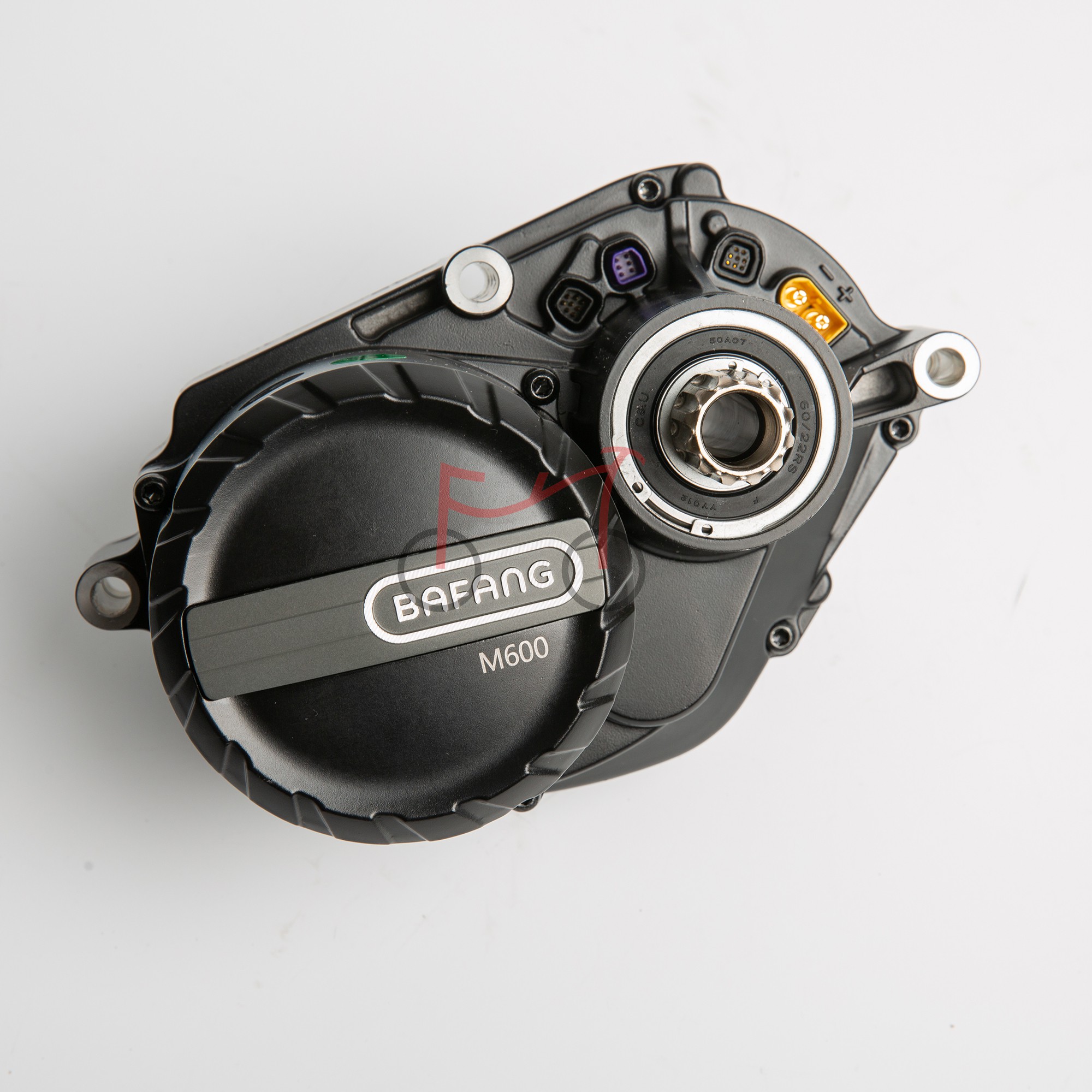

M600, 12 splines

https://www-x-fltebike-x-com.img.addlink.cn/upload/202106/watermark/1624418721.jpg

I might also add - once you are outside the 'bafang specific' motor/controller, then the rest of the bike is just standard bike parts, so wheels, tires, chain, sprockets, shocks, forks, bars, seat, pedals, etc - feel free to upgrade what ever your heart and pocketbook allow.

[Camdon44]

I have done several upgrades on the Luna X2. First of all I changed the seat to one with a little cushion. I added a stem riser of 2 inches and cut the handlebars off an inch on each end. Changed the grips to ones with palm supports. New pedals:https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1. I changed out the derailleur to the SRAM GX Eagle. Latest mods were a DVO JadeX rear shock and Vorsprung Smashpot fork inserts. The suspension components were a little over $1K, but worth every penny. It made a great bike an amazing bike!!
